Effect of each type of lighting

Two types of lighting can be used with EYE+:

• Frontlight

• Backlight

The type of lighting chosen may highlight certain specific areas of the part to be observed or detected. The table below gives the example of a object illuminated from two different angles: backlight or frontlight.

Table 30 Effect of types of lighting on Asycube

	Backlight	Frontlight

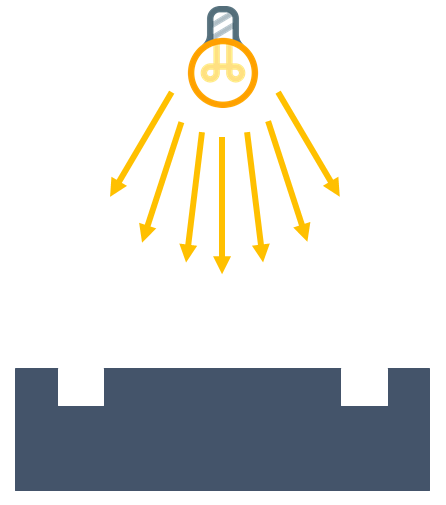

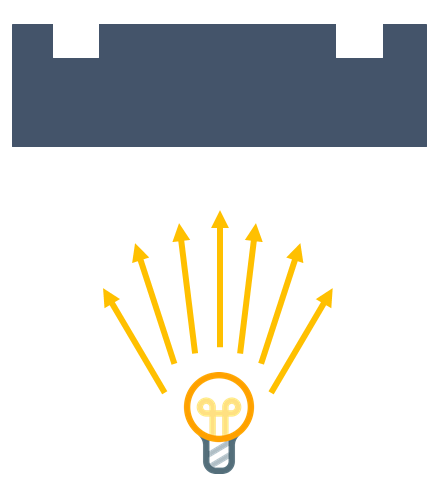

Example of object illumination

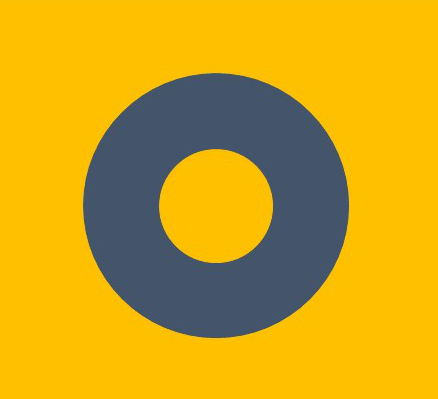

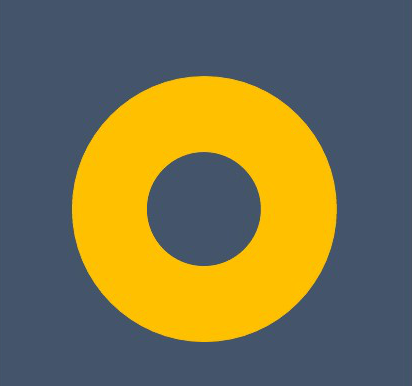

Areas of the part illuminated (in yellow)

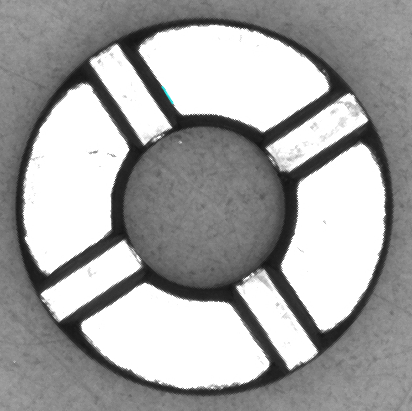

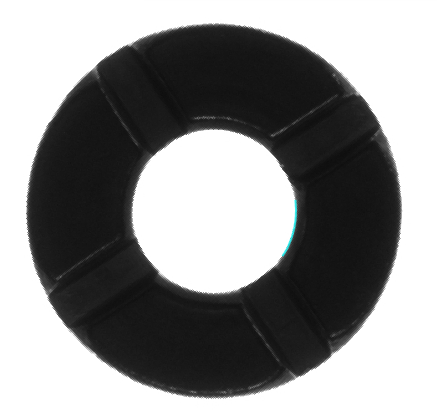

Rendering image
