Plugin installation

1. Check robot software

Check if your controller has the following required software options. The information should be displayed on the Tablet TP from the full menu Status > Version ID and select CONFIG.

  • Tablet TP S527

  • User Socket Messaging R648

Important

If the software is not installed on your robot, please contact FANUC support to get it.

2. Download the plugin

Download the plugin zip file fanuc-crx-eyeplusPlugin-v1.0.0.zip here. It must contain the following file

  • ASYRIL_EYEPLUS.ipl

3. Install the plugin on your robot

Unzip the fanuc-crx-eyeplusPlugin-v1.0.0.zip file and save the file on a USB key.

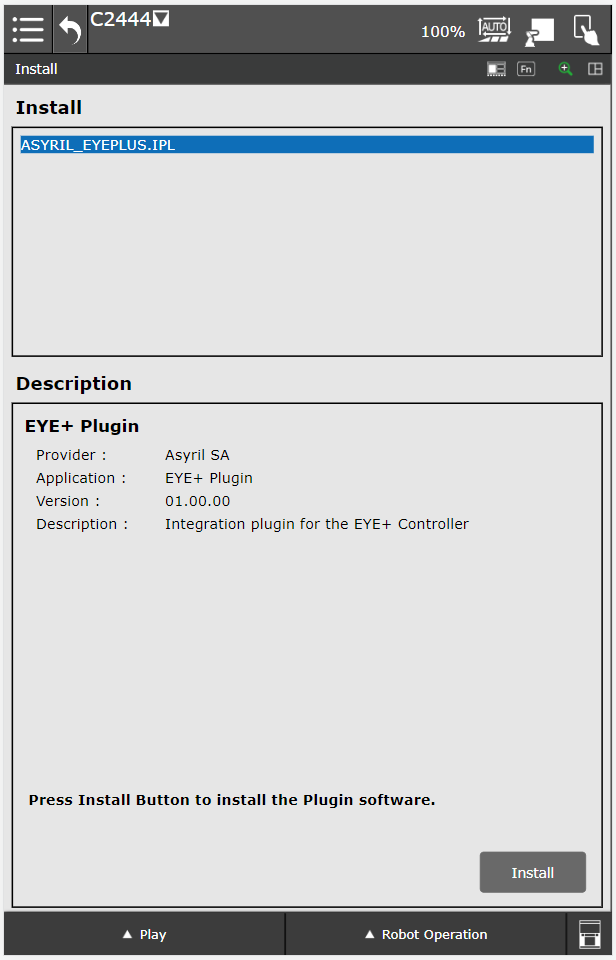

Connect the USB key to the USB port UD1: of the robot controller . From the Tablet TP, go to MENU > Plugins > Install. The file ASYRIL_EYEPLUS.IPL must appear in the list of available installation as presented in Fig. 1. Click on Install. Then re-start the controller by manually shutting the power off.

../_images/installation.png

Fig. 1 Select ASYRIL_EYEPLUS.IPL file and click on Install
